A switchboard fan control switch helps regulate heat inside electrical enclosures by turning cooling fans on only when needed. In most commercial and industrial HVAC environments, switchboards carry continuous electrical loads, which generate heat over time. If that heat is not managed, it can affect component performance and shorten equipment life. This post explains how a snap disc thermostat is used in this role and how it fits into a practical enclosure cooling system.
View full product line of fan control switches.
How a Switchboard Fan Control Switch Works Inside an Enclosure

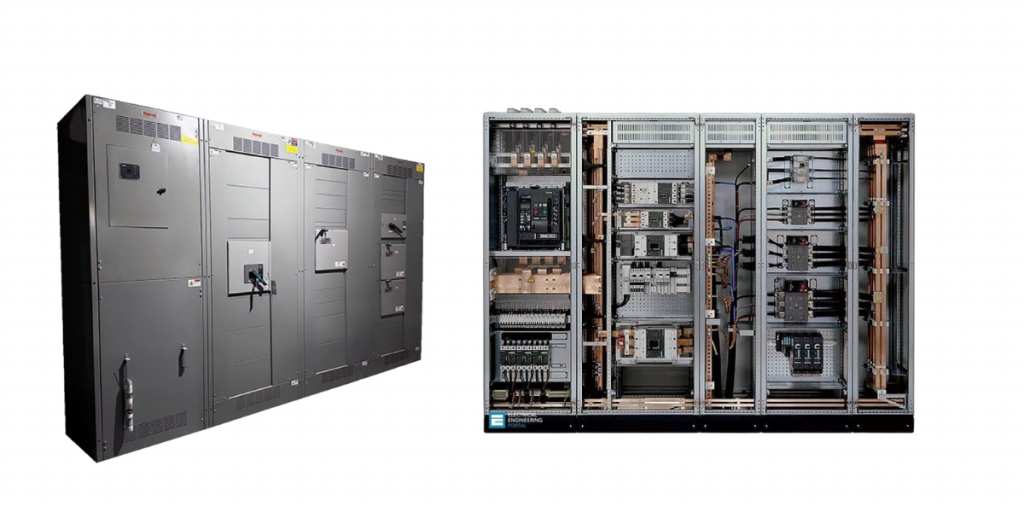

Inside a switchboard, heat builds as current moves through breakers, terminals, and bus bars. Even when the room is climate-controlled, the air inside the enclosure can still get significantly warmer.
To manage that, we install a snap disc thermostat that controls the fan based on internal temperature. Once installed, the system operates automatically:
- The thermostat monitors enclosure temperature
- At 100°F, it closes the circuit
- The fan turns on and begins moving air
- At 85°F, it opens the circuit
- The fan shuts off
This keeps airflow tied directly to actual conditions instead of running continuously.
Snap Disc Thermostat Design Switchboard Applications

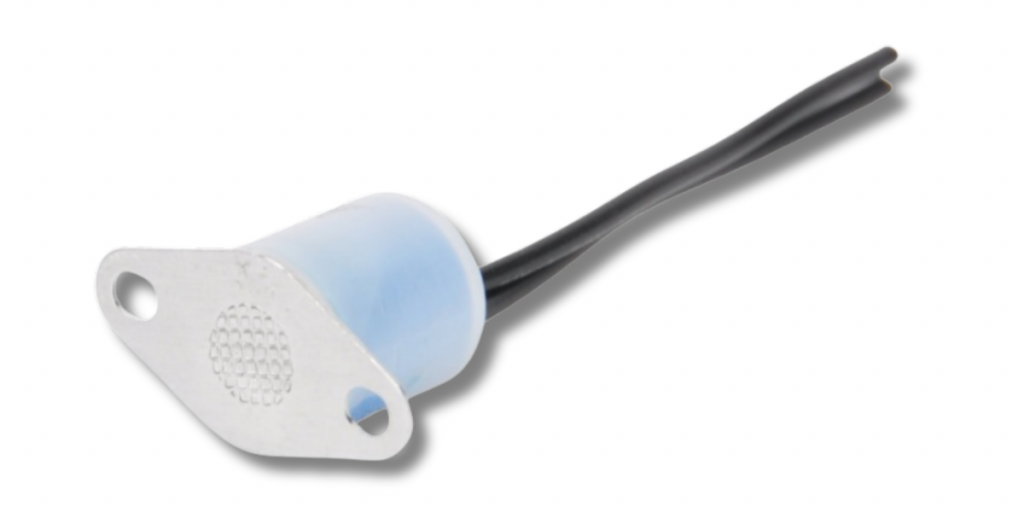

The 431-301A12-016 epoxy sealed snap disc thermostat serves as the control point in this setup. We designed it for use inside enclosed electrical systems where space and environmental exposure are both concerns.
From a design standpoint:
- The ½ inch size fits easily into tight layouts
- Epoxy sealing provides IP67 protection against moisture and dust
- Fixed temperature points ensure consistent switching
- The bimetal mechanism delivers repeatable performance without electronics
Because it’s a mechanical device, it does not rely on external control systems, which keeps installation straightforward. To purchase a 431-301A12-016, please contact us.
Installing the Fan Control Switch
Placement inside the enclosure matters. The switch needs to sense representative air temperature, not a cold or isolated spot.
We typically install it:
- Near heat-generating components, or
- In the path of rising warm air
Installation is simple:
- Mount the thermostat inside the enclosure
- Wire it in series with the fan
- Confirm temperature ratings match the application
- Test the system under load
We also offer variations in temperature settings, lead configurations, and mounting options to match different enclosure designs.
Energy Savings with a Control Switch
One of the main advantages of this approach is reducing unnecessary fan operation.
Without temperature control, fans often run continuously. That increases energy use and shortens fan life.
With this type of control in place:
- The fan runs only when needed
- Energy consumption drops
- Mechanical wear on the fan decreases
- Internal temperatures stay within a controlled range
Over time, that leads to lower operating costs and fewer maintenance issues.
Why Engineers Use a Switchboard Fan Control
This method works because it solves the problem without adding complexity.
Engineers choose this approach because:
- It fits easily into existing designs
- It holds up in harsh enclosure environments
- It operates without programming or calibration
- It responds directly to temperature changes
Compared to electronic controls, it’s a more straightforward solution that’s easier to implement and maintain.
A fan control switch provides a simple way to manage enclosure temperature without overengineering the system. By turning fans on only when needed, it reduces energy use and helps protect internal components from excess heat.
We design these switches to integrate directly into real-world electrical systems, so they perform consistently in the field.
Contact us for OEM pricing and engineering support.
