In freezing temperatures, starting a vehicle becomes much harder. Engine block heaters solve this by keeping engine components and fluids warm when the vehicle is off. But to avoid unnecessary energy use, a control mechanism must regulate when the heater turns on and off. That’s where a reliable engine block heater thermostat switch comes in.
For additional information on our epoxy-sealed SPDT thermostats, visit the product page.
Why Engine Blocks Need Temperature Regulation
Vehicle engines contain metal components and various fluids that respond poorly to extreme cold. When temperatures fall, metal contracts and fluid thickens—making cold starts more damaging and difficult. A block heater warms the engine bay so that oil, coolant, and metal components remain within safer operating ranges.
Without temperature control, though, a heater would run continuously, wasting power. By installing a temperature switch, the system only activates when it’s actually needed.
How the Thermostat Switch Works in Engine Applications
The epoxy-sealed snap disc thermostat used in this application closes at 5°F and opens at 15°F. When the engine temperature drops below 5°F, the contacts close and power flows to the heater. Once the engine temperature climbs past 15°F, the contacts open, shutting the heater off.

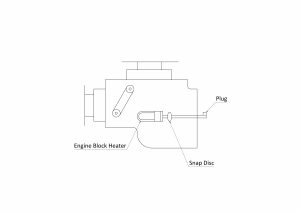

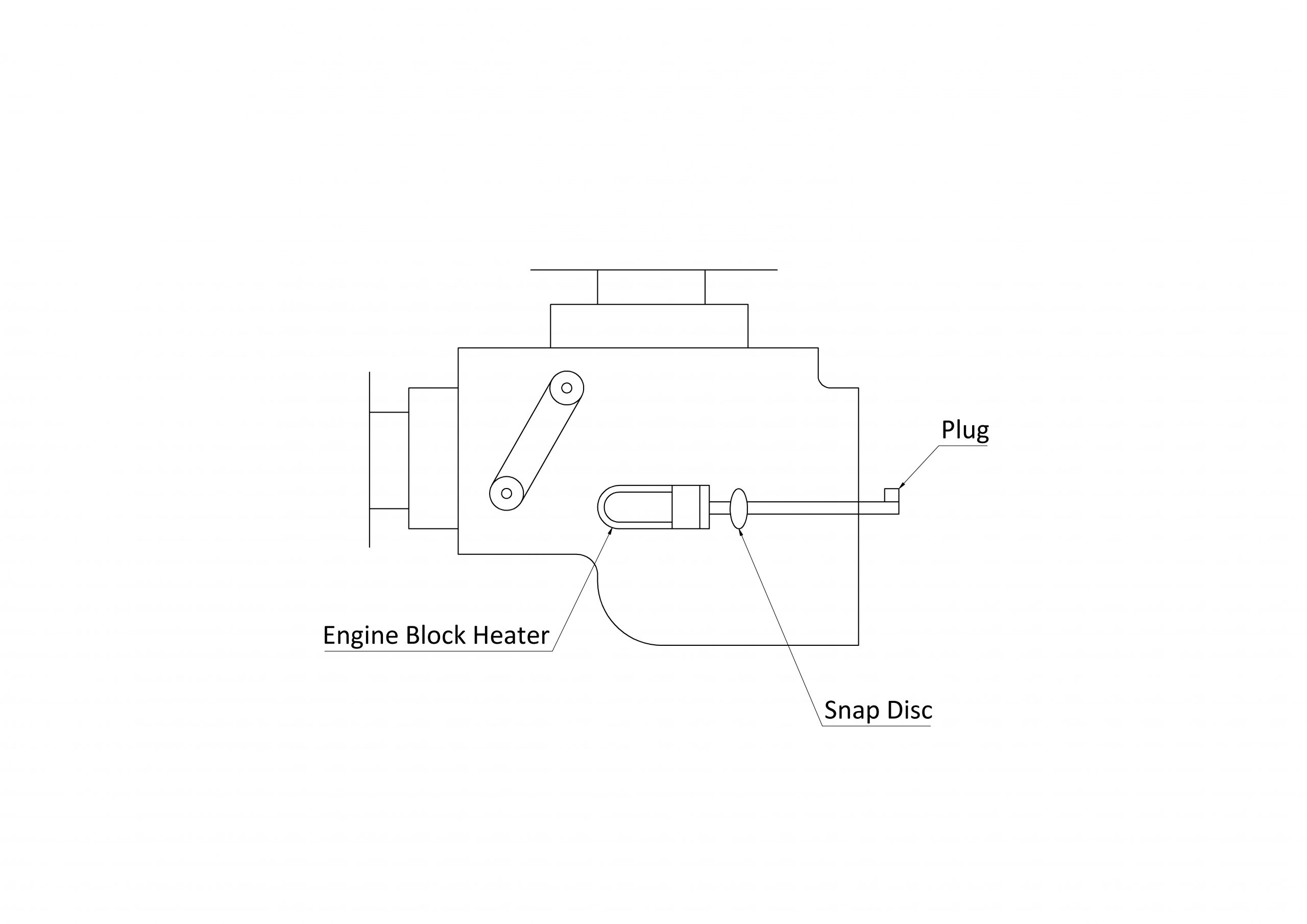

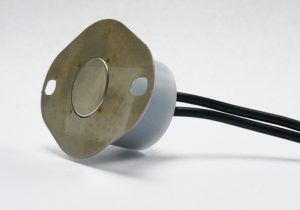

Mounted directly on the engine and wired in series with the block heater, this compact switch uses a bi-metal disc for precision switching. Its small footprint and rugged epoxy-sealed housing allow it to operate reliably in environments with dirt, oil, and vibration.
Benefits for Vehicle Owners and Fleet Managers
The thermostat switch prevents block heaters from running constantly. This cuts down on electricity costs without compromising cold weather performance. Users can leave their heaters plugged in without worrying about energy waste or overheating.
Fleet operators especially benefit from temperature switches in engine block heaters because they protect engines, reduce start-up failures, and extend equipment lifespan in harsh winter conditions.
Why Senasys Switches Are the Right Choice
Senasys switches are made in the U.S. and tested for performance before leaving our facility. We offer models with lower temperature setpoints than many competitors, which is critical in sub-zero environments. Our team also supports custom configurations including wire length, lead type, and mounting style.
The IP68 rating on our epoxy-sealed switches means they can withstand exposure to moisture, dirt, and fluid—common threats around engines.
Final Thoughts
Using an engine block heater thermostat switch adds intelligent control to a winter-critical component. It helps preserve engine health, saves on energy, and improves cold weather reliability. With Senasys snap disc switches, your heating solution stays smart and efficient.
To request OEM pricing, please contact us.
