Description

The 432-301AA 1/2″ Manual Reset Thermostat are ideally suited for applications where you want to call special attention to a specific temperature malfunction. The 432 series can be used as a safety limit that will break on temperature rise. The thermostat must be manually reset once tripped requiring a human to intervene once tripped.

Often used as a fail-safe, these manual reset thermostat switches require the user to intervene before resuming operations. The bimetal disc will snap at the appropriate temperature separating the electrical contacts. The switch will remain “open” until the button on the back is pushed, moving the disc back into the “closed” position.

The 432-301AA 1/2″ Manual Reset Thermostat meets UL Standards 873 and 353 and is available in a single-pole, single-throw device. Temperature calibrations are preset, and all units are subject to 100% mechanical and thermal inspection.

Senasys 1/2″ Snap Disc Thermostats are quality-engineered thermal sensors specifically designed for a variety of major appliances, including clothes dryers, hot liquid and food-dispensing machines, room unit and space heaters, air conditioning systems, copy machines, engine heaters, and wood stoves.

• Open on Temperature Rise
• Pipe mount. Other options available, contact us.
• 90° Terminal Orientation. Other options available, contact us.
• Variety of 1/4″ Spade Terminal Bends. Other options available, contact us.
• Temperature ranges of 100°F to 350°F
• Manual Reset
• Single pole, single throw (SPST)
• Up to 15 Amps @ 120 VAC
• UL rated for 6,000 cycles
• Operates with AC or DC
• Made in the USA

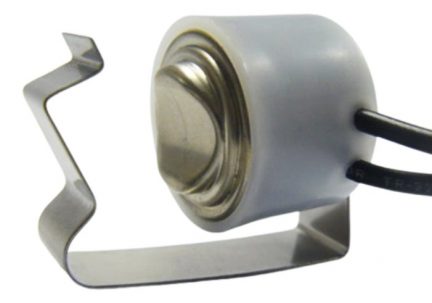

Our 3/16″ to 5/8″ pipe mounts are available in aluminum only and the 7/8″ and 1-1/8″ are brass only. If you would like a specific material, special orders are quantity based and have a longer lead time. For more information on determining your pipe mount size, click here!

For more information and product specifications, please view our catalog.

Senasys offers a variety of custom options such as terminals, temperature ranges and more. Please contact our direct customer service for more information.
