Description

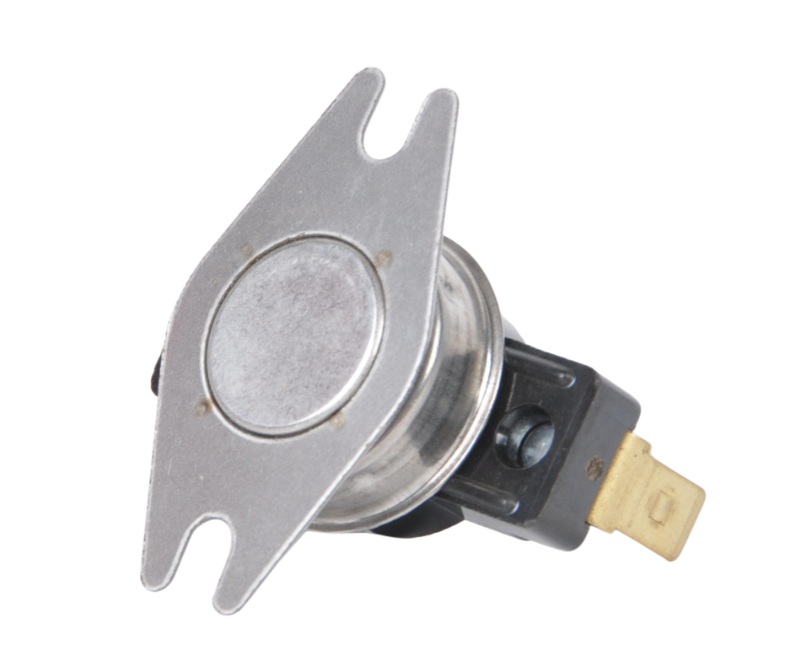

Our 2511F036 3/4″ Auto Reset Thermostat Switch (2511 series) is great for unique applications which require a faster response time or a lower contact resistance. These are our heavy duty switches that handle higher electrical loads to suit a broader range of applications. Carrying up to 25 amps at 240VAC, for over 100,000 cycles (30 Amps at 12VDC for 30,000 cycles).These switches are available in a single-pole, single-throw device. A 3/4″ bimetal thermodisc at the heart of our thermostat is set to a precise temperature range within 0-350°F (-18-176°C). The temperature range determines when the thermal switch will engage the electrical circuit, and when it will automatically reset. Over 40 standard temperature ranges are available, or we can easily design a custom temperature range to suit your application.
Product Specifications
- Close on Temperature Rise
- Notched Bracket
- 90° Terminal Orientation. Other options available, contact us.
- Variety of 1/4″ Spade Terminal Bends or Screw Terminals. Other options available, contact us.
- Temperature ranges up to 350°F
- Single pole, single throw (SPST)
- Up to 25 Amps @ 250VAC
- Operates with AC or DC
- UL rated for over 100,000 cycles
- Made in the USA
For more information about our other auto reset thermostat switches like our 2511F036 3/4″ Auto Reset Thermostat Switch, click here to view our catalog.
Senasys offers a variety of custom options such as terminals, temperature ranges and more. Please contact our direct customer service for more information.
