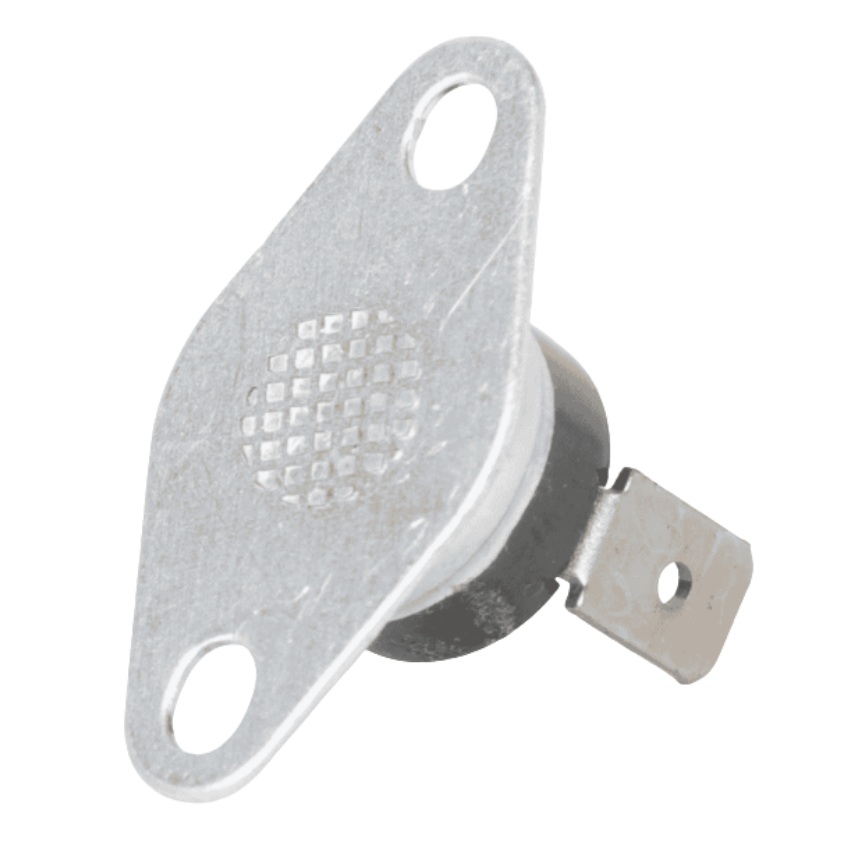

430-301A18 1/2″ Auto Reset Thermostat – Surface Mount (F)

(11 customer reviews)

$14.95

  • Close on Temperature Rise
  • Surface mount bracket
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 15 Amps @ 120 VAC
  • UL rated for 100,000 cycles
  • Operates with AC or DC
  • Made in the USA

Description

Our 430-301A18 1/2″ Auto Reset Thermostat uses a bi-metal 1/2″ disc for snap action, positive & instantaneous opening or closing of electric circuits. The 1/2″ auto reset snap disc thermostats have a smaller footprint allowing for a lower cost than our other automatic reset thermostats.

The 430-301A18 1/2″ Auto Reset Thermostat can be specified for heating applications where the contacts break on temperature rise, or for cooling applicants where the contacts break on temperature fall.  Temperature calibrations are preset, and all units are subject to 100% mechanical and thermal inspection.

Senasys 1/2″ Snap Disc Thermostats are quality-engineered thermal sensors specifically designed for a variety of major appliances, including clothes dryers, hot liquid and food-dispensing machines, room unit and space heaters, air conditioning systems, copy machines, engine heaters, and wood stoves.

Product Specifications

  • Close on Temperature Rise
  • Surface mount bracket
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 15 Amps @ 120 VAC
  • UL rated for 100,000 cycles
  • Operates with AC or DC
  • Made in the USA

For more information about our automatic reset thermostat switches, click here to view our catalog.

Senasys offers a variety of custom options such as terminals, temperature ranges and more. Please contact our direct customer service for more information.

Additional information

Weight N/A
1/2" Temperatures - F

045 Close 45°F ±5°F Open 34°F ±5°F (F012), 060 Close: 60°F ±5° Open: 50°F ±5° (F013), 085 Close 85°F ± 5°F Open 70°F ± 6°F (F047), 100 Close: 100°F ±5°F Open: 85°F ±5°F (F016), 125 Close 125°F ± 7°F Open 105°F ± 7°F(F042), 150 Close: 150°F ±5°F Open: 135°F ±5°F (F021), 175 Close: 175°F ±5°F Open: 155°F ±5°F (F008), 180 Close: 180°F ±5°F Open: 160°F ±5°F (F065), 190 Close: 190°F ±5°F Open: 175°F ±5°F (F025), 200 Close: 200°F ±5°F Open: 185°F ±5°F (F026), 220 Close: 220°F ±5°F Open: 200°F ±5°F (F027), 250 Close: 250°F ±5°F Open: 230°F ±5°F (F028)

1/4" QC "Spade" Terminal Bends

0°, 45°, 90°
