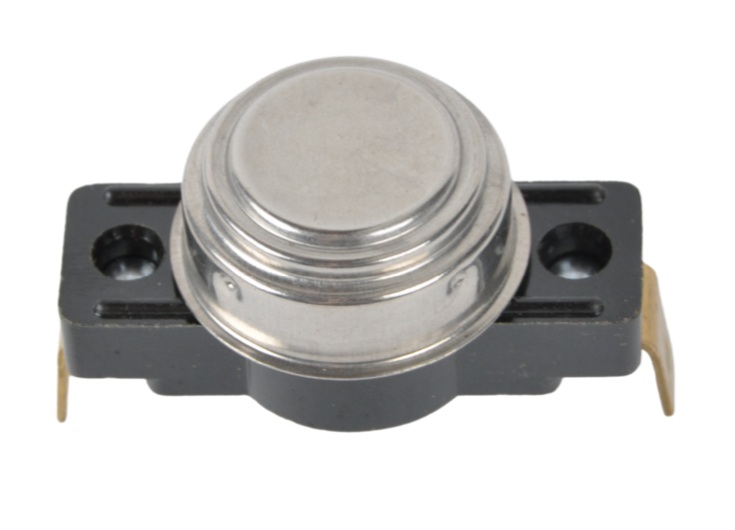

2511L007 3/4″ Auto Reset Thermostat – Direct Mount (L)

(3 customer reviews)

$15.25

  • Open on Temperature Rise
  • Direct Mount
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends or Screw Terminals. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 25 Amps @ 250VAC
  • Operates with AC or DC
  • UL rated for over 100,000 cycles
  • Made in the USA
SKU: N/A Categories: , , Tags: , , ,

Description

Our 2511L007 3/4″ Auto Reset Thermostat Switch (2511 series) is great for unique applications which require a faster response time or a lower contact resistance. These are our heavy duty switches that handle higher electrical loads to suit a broader range of applications. Carrying up to 25 amps at 240VAC, for over 100,000 cycles (30 Amps at 12VDC for 30,000 cycles).These switches are available in a single-pole, single-throw device.  A 3/4″ bimetal thermodisc at the heart of our thermostat is set to a precise temperature range within 0-350°F (-18-176°C). The temperature range determines when the thermal switch will engage the electrical circuit, and when it will automatically reset. Over 40 standard temperature ranges are available, or we can easily design a custom temperature range to suit your application.

Product Specifications

  • Open on Temperature Rise
  • Direct Mount
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends or Screw Terminals. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 25 Amps @ 250VAC
  • Operates with AC or DC
  • UL rated for over 100,000 cycles
  • Made in the USA

For more information about our other auto reset thermostat switches like our 2511L007 3/4″ Auto Reset Thermostat, click here to view our catalog.

Senasys offers a variety of custom options such as terminals, temperature ranges and more. Please contact our direct customer service for more information.

Additional information

Weight N/A
3/4" Temperatures - L

015 L-2204 Open 15°F, Close 5°F (±5°F), 030 L-2164 Open by 30ºF max, Close by 20°F min, 040 L-2166 Open by 40ºF max, Close by 30°F min, 045 L-2132 Open by 45ºF max, Close by 35°F min, 050 L-750 Open at 50ºF, Close at 40°F ±5°F, 060 L-2085 Open 60ºF, Close 50ºF (±5°F), 070 L-1671 Open 70ºF, Close 60ºF (±5°F), 095 L-702 Open 95°F, Close 85°F (±5°F), 100 L-227 Open 100ºF, Close 85ºF (±5°F), 110 L-180 Open 110°F, Close 100°F (±5°F), 120 L-256 Open 120°F, Close 110°F (±5°F), 130 L-157 Open 130°F, Close 120°F (±5°F), 140 L-155 Open 140ºF, Close 125ºF (±5°F), 150 L-269 Open 150°F, Close 140°F (±5°F), 160 L-311 Open 160°F, Close 150°F (±5°F), 170 L-312 Open 170°F, Close 160°F (±5°F), 180 L-304 Open 180°F, Close 170°F (±5°F), 190 L-707 Open 190°F, Close 180° (±5°F), 200 L-454 Open 200ºF, Close 185ºF (±5°F), 220 L-863 Open 220ºF, Close 205ºF (±5°F), 245 L-885 Open 245ºF, Close 205ºF (±5°F), 260 L-930 Open 260°F, Close 240°F (±5°F), 280 L-1382 Open 280°F, Close 260°F (±5°F), 302 L-1070 Open 302ºF, Close 280ºF (±5°F), 325 L-2192 Open 325°F, Close 300°F (±5°F)
3/4" Switch Terminals

0° Screw Terminal, 45° Screw Terminal, 0° Terminal, 45° Terminal, 90° Terminal
