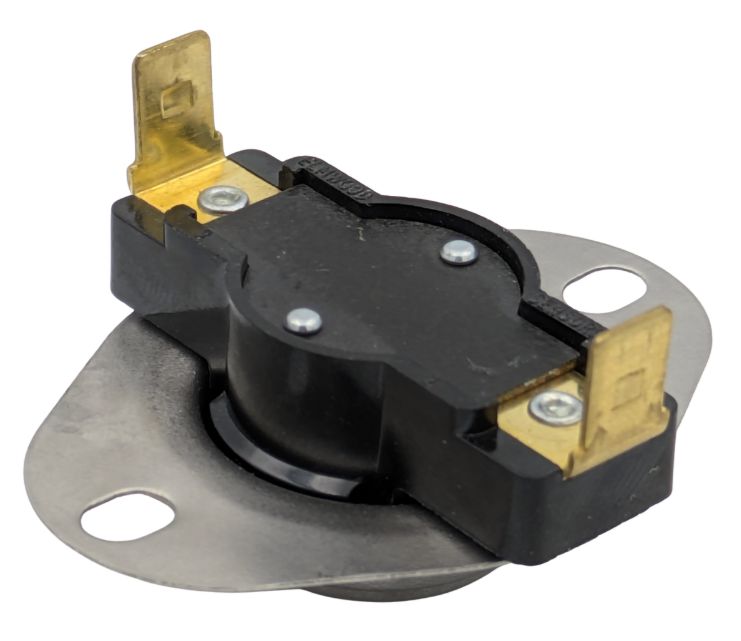

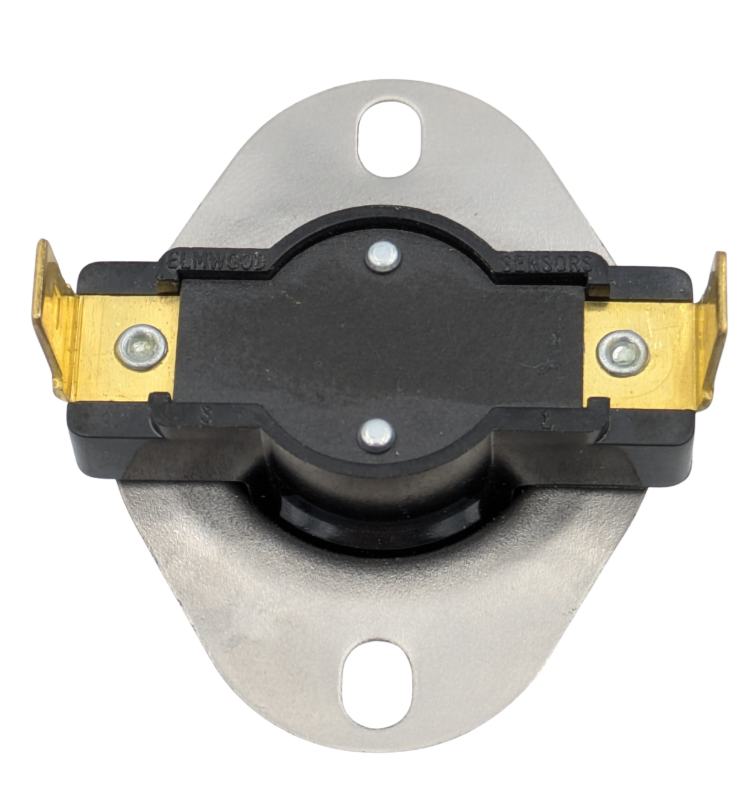

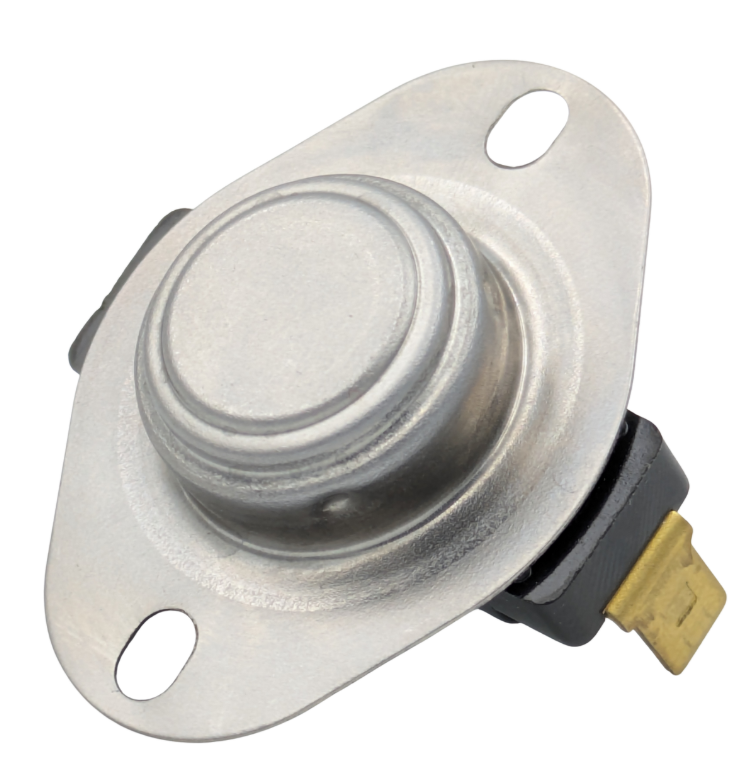

2511F002 3/4″ Auto Reset Thermostat – Airstream Mount (F)

(5 customer reviews)

$15.25

  • Close on Temperature Rise
  • Airstream Mount
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends or Screw Terminals. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 25 Amps @ 250VAC
  • Operates with AC or DC
  • UL rated for over 100,000 cycles
  • Made in the USA

Description

Our 2511F002 3/4″ Auto Reset Thermostat Switch (2511 series) is great for unique applications which require a faster response time or a lower contact resistance. These are our heavy duty switches that handle higher electrical loads to suit a broader range of applications. Carrying up to 25 amps at 240VAC, for over 100,000 cycles (30 Amps at 12VDC for 30,000 cycles).These switches are available in a single-pole, single-throw device.  A 3/4″ bimetal thermodisc at the heart of our thermostat is set to a precise temperature range within 0-350°F (-18-176°C). The temperature range determines when the thermal switch will engage the electrical circuit, and when it will automatically reset. Over 40 standard temperature ranges are available, or we can easily design a custom temperature range to suit your application.

Product Specifications

  • Close on Temperature Rise
  • Airstream Mount
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends or Screw Terminals. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 25 Amps @ 250VAC
  • Operates with AC or DC
  • UL rated for over 100,000 cycles
  • Made in the USA

For more information about our other auto reset thermostat switches like our 2511F002 3/4″ Auto Reset Thermostat, click here to view our catalog.

Senasys offers a variety of custom options such as terminals, temperature ranges and more. Please contact our direct customer service for more information.

Additional information

Weight 2.00 oz
3/4" Temperatures - F

015 F-356 Close 15°F, Open 5°F (±3°F), 035 F-640 Close by 35ºF max, Open by 25ºF min, 045 F-600 Close 45ºF, Open 34ºF (±5°F), 050 F-518 Close 50°F, Open 40°F (±5°F), 065 F-669 Close 65ºF, Open 40ºF (±5°F), 070 F-563 Close 70ºF, Open 60ºF (±5°F), 080 F-029 Close at 80ºF, Open at 65ºF (±5°F), 090 F-047 Close at 90ºF, Open at 80ºF (±5°F), 100 F-351 Close by 100ºF max, Open by 85ºF min, 110 F-021 Close 110ºF, Open 95ºF (±5°F), 120 F-201 Close 120ºF, Open 105ºF (±5°F), 130 F-187 Close at 130ºF, Open at 115ºF (±5°F), 140 F-121 Close 140ºF, Open 110ºF (±5°F), 150 F-078 Close 150ºF, Open 135ºF (±5°F), 160 F-420 Close 160°F, Open 145°F (±5), 170 F-216 Close 170°F, Open 155 (±5°F), 180 F-214 Close 180ºF, Open 165ºF (±5°F), 190 F-212 Close 190°F, Open 175°F (±5°F), 200 F-185 Close 200°F, Open 185ºF (±5°F), 220 F-617 Close 220°F, Open 200°F (±5°F), 230 F-639 Close 230°F, Open 200°F (±5°F), 250 F-172 Close 250°F (±6°F), Open 230°F (±5°F), 280 F-681 Close 280°F, Open 260°F (±5°F), 300 F-460 Close 300°F (±10°F), Open 260°F (±7°F), 325 F-168 Close 325°F (+/-12°F), Open 275°F (+/-8°F)

3/4" Switch Terminals

0° Screw Terminal, 45° Screw Terminal, 0° Terminal, 45° Terminal, 90° Terminal

5 reviews for 2511F002 3/4″ Auto Reset Thermostat – Airstream Mount (F)

  1. Dan T. (verified owner)

    I purchased this to control the fans and vents in my backyard greenhouse. It works exactly as anticipated.

  2. michael daugharty (verified owner)

  3. carl pugh (verified owner)

    just wat i needed price good

  4. James T. (verified owner)

  5. Bill P. (verified owner)

    Great service and the part was exactly as described and fit perfectly.
