Electric baseboard heaters operate at high temperatures, and without proper safeguards, they pose fire and equipment damage risks. Installing a snap disc limit switch for baseboard heater systems ensures reliable overheat protection by cutting off power at unsafe temperatures. In this article, we’ll explore how these heaters function, why thermal control matters, and how Senasys snap disc thermostats solve the problem.
To learn more or purchase, visit the product category.
How Electric Baseboard Heaters Work Without Fans
Electric baseboard heaters rely on passive convection. Inside each unit, metal fins heat up to around 200°F. As cool air enters from below, the fins warm it, causing it to rise and circulate. Because there are no fans involved, these systems operate quietly and efficiently. However, the lack of forced airflow makes them vulnerable to overheating if airflow becomes obstructed.
To protect against this risk, manufacturers install thermal limit switches that respond to dangerous temperature increases in real time.
Why Thermal Overload Protection Is Critical in Electric Heaters
Dust accumulation, blocked airflow, or malfunctioning components can push heater temperatures beyond safe thresholds. Without thermal protection, internal temperatures can continue to rise, creating a serious fire hazard.
A snap disc limit switch detects when the heater exceeds its set temperature and disconnects power instantly. Once the temperature drops to a safe level, the switch automatically resets, restoring function without requiring manual intervention.

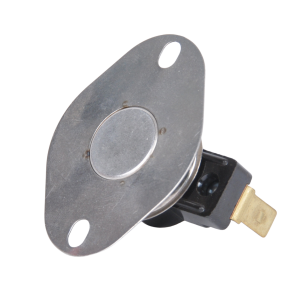

Senasys 2511L003-863: Snap Disc Thermostat for HVAC and Heater Safety
The 2511L003-863 is one of the most commonly used models in electric baseboard heaters. This ¾-inch automatic reset snap disc thermostat delivers fast thermal response and long cycle life.
Key Specifications:
-
Opens at 220°F and resets at 205°F
-
Rated for 25 Amps at 240 VAC (100,000+ cycles)
-
DC rating: 30 Amps at 12 VDC
-
Large mounting bracket for secure installation
-
Custom terminal and bracket configurations available
This model fits many standard heater designs. However, it is only one of many temperature and configuration options available in the Senasys catalog.
Other Snap Disc Thermostat Options for Baseboard Heaters
Senasys offers a wide selection of snap disc thermostats with varying:
-
Temperature set points
-
Reset types (manual or automatic)
-
Mounting styles and brackets
-
Terminal configurations
-
Electrical ratings for AC and DC applications
OEMs and system integrators can select the exact specifications needed for their application. Whether you’re designing compact units or commercial-grade heating systems, Senasys provides the flexibility to match your performance and safety requirements.

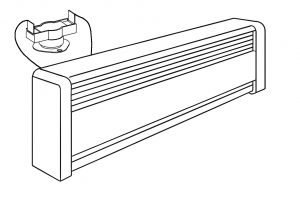

How to Install a Snap Disc Limit Switch in a Baseboard Heater
Technicians typically mount the thermostat inside the heater housing and wire it inline with the heating element circuit. During normal operation, the switch stays closed. When temperatures exceed the preset limit, the switch opens, cutting off power. As the heater cools, the switch resets and resumes operation.
This cycle prevents thermal damage while eliminating the need for manual resets.
Benefits for Heater Manufacturers and HVAC Installers
Incorporating a thermal limit switch adds immediate value to electric heating systems. For OEMs, this means improved product safety, easier compliance with regulations, and reduced liability. For HVAC installers, it ensures reliability in the field and lowers the risk of callbacks due to overheating.
Additional benefits include:
-
U.S.-based manufacturing and fast lead times
-
Custom-engineered solutions on request
-
Competitive pricing for high-volume orders
-
Trusted performance across HVAC and industrial markets
Improve Baseboard Heater Safety with Snap Disc Thermostats from Senasys
Choosing a high-quality snap disc limit switch for baseboard heater systems is a smart, cost-effective way to improve safety and system longevity. Whether you need the popular 2511L003-863 or a custom configuration, Senasys has the solution.
For OEM pricing or technical assistance, contact us.
