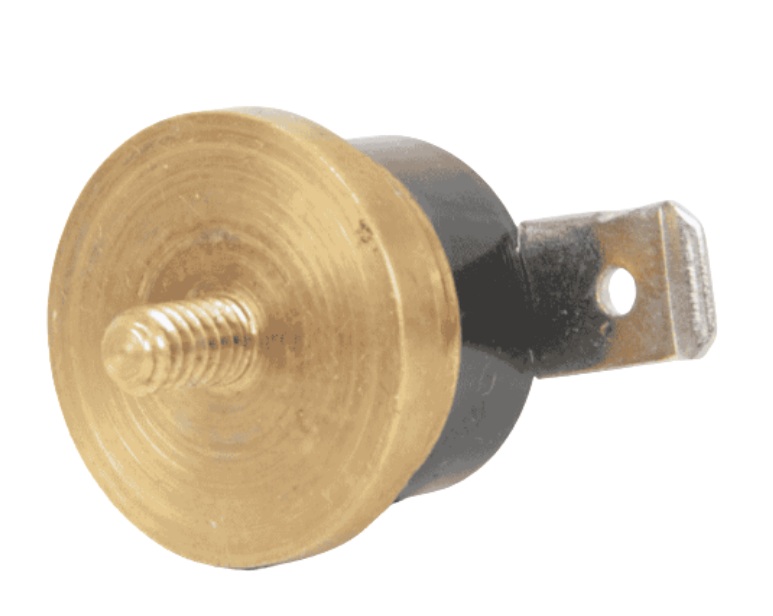

430-301A6 1/2″ Auto Reset Thermostat Switch – #6-32 Stud Mount (F)

(4 customer reviews)

$19.00

  • Close on Temperature Rise
  • #6-32 Stud Mount
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 15 Amps @ 120 VAC
  • UL rated for 100,000 cycles
  • Operates with AC or DC
  • Made in the USA

Description

Our 430-301A6 1/2″ Auto Reset Thermostat Switch use a bi-metal 1/2″ disc for snap action, positive & instantaneous opening or closing of electric circuits. The 1/2″ auto reset snap disc thermostats have a smaller footprint allowing for a lower cost than our other automatic reset thermostats.

The 430-301A6 1/2″ Auto Reset Thermostat Switch can be specified for heating applications where the contacts break on temperature rise, or for cooling applicants where the contacts break on temperature fall.  Temperature calibrations are preset, and all units are subject to 100% mechanical and thermal inspection.

Senasys 1/2″ Snap Disc Thermostats are quality-engineered thermal sensors specifically designed for a variety of major appliances, including clothes dryers, hot liquid and food-dispensing machines, room unit and space heaters, air conditioning systems, copy machines, engine heaters, and wood stoves.

Product Specifications

  • Close on Temperature Rise
  • #6-32 Stud Mount
  • 90° Terminal Orientation. Other options available, contact us.
  • Variety of 1/4″ Spade Terminal Bends. Other options available, contact us.
  • Temperature ranges up to 350°F
  • Single pole, single throw (SPST)
  • Up to 15 Amps @ 120 VAC
  • UL rated for 100,000 cycles
  • Operates with AC or DC
  • Made in the USA

For more information about our automatic reset thermostat switches, click here to view our catalog.

Senasys offers a variety of custom options such as terminals, temperature ranges and more. Please contact our direct customer service for more information.

Additional information

Weight N/A
1/2" Temperatures - F

045 Close 45°F ±5°F Open 34°F ±5°F (F012), 060 Close: 60°F ±5° Open: 50°F ±5° (F013), 085 Close 85°F ± 5°F Open 70°F ± 6°F (F047), 100 Close: 100°F ±5°F Open: 85°F ±5°F (F016), 125 Close 125°F ± 7°F Open 105°F ± 7°F(F042), 150 Close: 150°F ±5°F Open: 135°F ±5°F (F021), 175 Close: 175°F ±5°F Open: 155°F ±5°F (F008), 180 Close: 180°F ±5°F Open: 160°F ±5°F (F065), 190 Close: 190°F ±5°F Open: 175°F ±5°F (F025), 200 Close: 200°F ±5°F Open: 185°F ±5°F (F026), 220 Close: 220°F ±5°F Open: 200°F ±5°F (F027), 250 Close: 250°F ±5°F Open: 230°F ±5°F (F028)

1/4" QC "Spade" Terminal Bends

0°, 45°, 90°

4 reviews for 430-301A6 1/2″ Auto Reset Thermostat Switch – #6-32 Stud Mount (F)

  1. Robert A. (verified owner)

    Works as advertised. Quality prodt

  2. R Arbogast (verified owner)

    Works exactly as advertised, used as replacement for hot air solar panel. Solidly built, quality product

  3. Wayne Kraai (verified owner)

    I tried to find this sensor for over a year and no one could find it from local suppliers. It turns my solar panels that are used for heat installed on my home in 1985.
    I googled elmwood sensors and then sent a picture of it with the part number to your company. The representatives that I dealt with were great. I needed to answer several questions and they sent me the part number I needed to order. I purchased two of them.
    I installed the sensor in my nonworking solar panel and it now turns on and off properly. I have a spare in case the other panels sensor goes bad.
    I have written up a review which has been posted saying your company is great to work with.
    Wayne Kraai

  4. Christopher M. (verified owner)

    Difficult replacement part to find. I’m glad you had it. It fits on the wet exhaust elbow of my Northern Lights M643 generator.
