Furnaces play a critical role in residential and commercial heating systems. However, they also pose potential hazards due to excessive heat. To ensure safety and maintain optimal performance, furnace limit switches serve as high-limit safety cutoffs. The Senasys 2511L002-707 snap disc switch offers a reliable and customizable solution for this function.
→ To purchase this model, visit the product page.

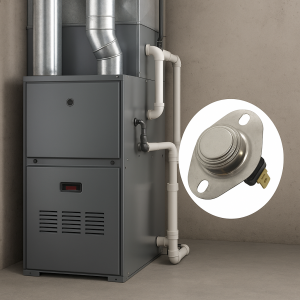

What Is the Senasys 2511L002-707 Snap Disc Switch?
The Senasys 2511 series consists of automatic reset snap disc thermostats built for heavy-duty HVAC applications. Each unit handles 25 amps at 240 VAC and is tested for 100,000 cycles.
Moreover, the mechanical snap-action design eliminates the need for complex electronics, offering superior reliability in high-temperature environments. The temperature ratings can also be customized to fit specific OEM requirements.
How Snap Disc Switches Work in Furnace Applications
In a typical HVAC setup, the furnace heats air using gas or electricity. A blower fan then distributes that warm air throughout the building.
To prevent overheating, the furnace limit switch, such as the 2511L002-707, monitors the temperature inside the furnace plenum. When temperatures exceed 190°F, the disc snaps and opens the contacts, cutting power to the heating elements. Once the air cools to below 180°F, the disc snaps back and closes the circuit, allowing the furnace to restart.
As a result, this cycle ensures safety without requiring manual intervention.
Installation and Integration
Proper placement inside the furnace is essential for accurate temperature monitoring. For example, installers typically mount the switch near the heat exchanger or airflow path.
To integrate the switch:
-
Mount it on a flat metal surface using screws or clips.
-
Ensure direct exposure to air flow for thermal accuracy.
-
Wire the device in series with the power supply to the burner or element.
Consequently, this ensures timely cutoff and reliable operation under variable thermal loads.
Industry Impact and OEM Advantages
The 2511L002-707 snap disc delivers value across the HVAC supply chain. For OEMs and service teams, it supports:
-
Improved safety through dependable high-temperature shutdown
-
Reduced costs thanks to its simple mechanical structure
-
Fast lead times due to domestic manufacturing
-
Custom temperature settings tailored to various furnace models
Furthermore, using a pre-calibrated, resettable switch reduces service calls and extends equipment life.
Why Choose Senasys?
Unlike offshore alternatives, Senasys manufactures all snap disc switches in the USA. This ensures faster delivery, superior quality control, and responsive customization.
Additionally, our engineering team collaborates with OEMs to develop solutions that align with product performance goals and safety standards.
→ To request OEM pricing, contact us.
