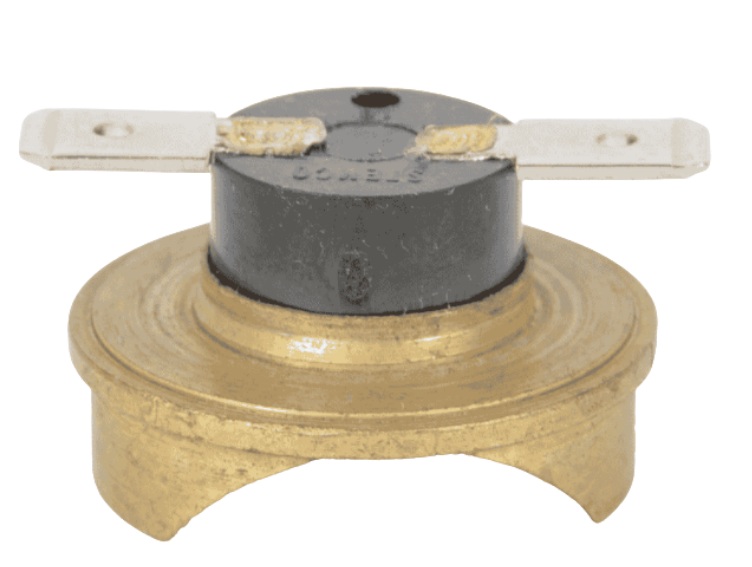

430 Series – 1/2″ Thermostat – Pipe Mount (L)

(1 customer review)

$19.00

Open on Temperature Rise

  • Many pipe mount options
  • 90° Terminal Orientation
  • Variety of 1/4″ Spade Terminals
  • Temp ranges up to 350°F
  • Up to 15 Amps @ 120 VAC
  • UL rated for 100,000 cycles
  • Operates with AC or DC
  • Made in the USA
Clear

Description

Automatic Reset Snap Disc Thermostats

430 Series

Open on Temperature Rise

These thermostats open and close automatically in the temperature range you choose. A bimetal disc in the switch snaps at specified temperatures, positively opening and closing the electrical contacts.

  • Many pipe mount options
  • 90° Terminal Orientation
  • Variety of 1/4″ Spade Terminals
  • Temp ranges up to 350°F
  • Up to 15 Amps @ 120 VAC
  • UL rated for 100,000 cycles
  • Operates with AC or DC
  • Made in the USA

Our 3/16″ to 5/8″ pipe mounts are available in aluminum only. 7/8″ and 1-1/8″ are brass only. If you would like a specific material, special orders are quantity based and have a longer lead time. For more information on determining your pipe mount size, click here! Please call for more information.

For more information about our automatic reset thermostat switches, click here to view our catalog.

Need help choosing the right pipe mount option for your application, click here!

Senasys offers a variety of custom options such as terminals, temperature ranges and more. Please contact our direct customer service for more information.

430 Auto Reset Snap Disc Thermostat Catalog Pages Contact us about our 432 manual reset snap disc thermostats.

Additional information

Weight N/A
1/2" Temperatures - L

045 Open 45°F ± 5°F Close 34°F ± 6°F (L527), 060 Open: 60°F ±5°F Close: 45°F ±5°F (L558), 075 Open: 75°F ±5°F Close: 60°F ±7°F (L636), 100 Open 100°F ± 5°F Close 85°F ± 5°F (L533), 125 Open 125°F ± 5°F, Close 105°F ±5°F (L610), 150 Open: 150°F ±5°F Close: 135°F ±5°F (L538), 170 Open: 170°F ±7°F Close: 155°F ±7°F (L540), 180 Open 180°F ± 5°F Close 155°F ± 5°F (L578), 190 Open 190°F ± 5°F Close 170°F ± 7°F (L588), 200 Open: 200°F ±5°F Close: 185°F ± 7°F (L543), 220 Open: 220°F ±5°F Close: 190°F ±8°F (L-665), 250 Open: 250°F ±5°F Close: 230°F ±7°F (L545)

1/4" QC "Spade" Terminal Bends

0°, 45°, 90°

Pipe Mounts

1-1/8" Mount 1.125 OD Brass, 3/8" Mount .375 OD Aluminum, 1/2" Mount .500 OD Aluminum, 7/16" Mount .437 OD Aluminum, 7/8" Mount .875 OD Aluminum
